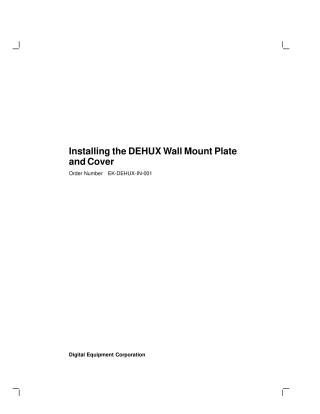

Installing the DEHUX Wall Mount Plate and Cover

This document is an installation guide for the DEHUX Wall Mount Plate and Cover, designed to mount the DEChub 90 Ethernet Backplane and standard 19-inch rack mount patch panels. It facilitates mounting on either a solid wall or an office partition.

Key aspects covered include:

• Installation considerations: The total system weight (plate, backplane, power supply, modules) is approximately 45 pounds. Recommended height for wall mounting is 63 inches from the floor to the top of the plate for optimal LED visibility.
• Mounting methods: Detailed instructions are provided for wall mounting using either supplied wood screws (for solid wood surfaces) or hollow wall fasteners (for hollow walls). Office partition mounting uses specific brackets and screws.
• Component installation: Steps detail how to secure the DEChub 90 backplane onto the wall mount plate, how to install standard 19-inch patch panels (with a pivoting bracket for rear access and cable management features), and finally, how to install the protective cover (which has holes for optional locking).
• Specifications: The document lists component weights (wall mount panel 12 lb, cover 10 lb), mounting area dimensions, and required clearances for installation.
• Parts List: A comprehensive list of all hardware included in the package is provided.
