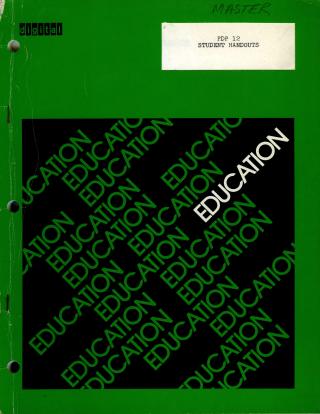

PDP 12 Student Handouts

This document is a comprehensive collection of technical handouts for the PDP-12 computer system, designed for student instruction. It covers a wide array of topics detailing the architecture, operation, and interfacing of the PDP-12.

Key areas addressed include:

• System Architecture & Data Flow: Detailed block diagrams of the PDP-12A system, major state flow, and data flow, including memory addressing, bus transfers, and core memory organization (ferrite core array, address selection).
• Core Logic & Operations: Explanations of fundamental logic functions (AND, OR), types of flip-flops (D-Type, 7474), and two-bit two-stage adders. It also covers key I/O preset procedures, central processor timing, and cycle time.
• Instruction Sets & Control: Outlines of eight basic instructions, LINC mode instructions with their subgroups and trap codes, and detailed logic for specific instructions like "AND." Extended address and memory control concepts are also discussed.
• Input/Output & Interrupts: Descriptions of the I/O bus (device selection and IOP gating), the interrupt concept and chain, and IOT timing.
• Peripherals & Interfaces: Extensive coverage of various peripherals, including the TTY distributor and block diagram, A-D converter (block diagram, control), D-A vertical and horizontal adders, display character table, and the VR-12 block diagram.
• LINC Tape System: In-depth information on LINC tape, including its block diagram, flow diagram, format, reading/writing processes, and control mechanisms.
• Miscellaneous Functions: Discussions on data break, multiply operations, and relays.
• Practical Exercises: Includes an exercise titled "Mark Tape, Copy Tape, Print Dial Index Exercise," demonstrating operational procedures.

The document utilizes numerous block diagrams, flowcharts, timing diagrams, truth tables, and instruction lists to illustrate complex concepts, making it a valuable resource for understanding the internal workings and operational aspects of the PDP-12.
