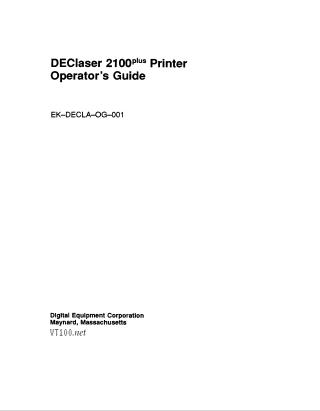

DEClaser 2100 plus Printer Operator's Guide

This document is the DEClaser 2100 plus Printer Operator's Guide, published by Digital Equipment Corporation (revised July 1991).

It describes the DEClaser 2100 plus printer as an electrophotographic laser printer that prints text and graphics at 300 dpi, at speeds up to 8 pages/minute, designed for monthly volumes of 3,000 to 10,000 prints.

Key features and options of the printer include:

• Support for optional external font, emulation, and PostScript cartridges.
• Font downline loading capability.
• Compatibility with both serial (RS232C) and parallel (Centronics) interfaces.
• User-friendly maintenance with a single replaceable supply cartridge.
• Ability to print on various media, including envelopes, with manual feeding options.
• User-installable memory expansion (up to 3 MB).

The guide provides comprehensive information on:

• Printer Components: Description and functions of all parts.
• Operating Information: Procedures for powering the printer on/off, loading paper (from cassette or manually), selecting output trays, adjusting print density, and printing test pages (Engine Test Print, Test Print A/B, Font List).
• Control Panel: Details on using the keypad, understanding indicator lights, and message display.
• Printer Configuration: How to set up printer parameters using menus, manage memory (ROM, RAM, NVRAM), and save settings.
• Print Media: Specifications and special considerations for using various media like paper, envelopes, transparencies, and labels, along with proper handling and storage.
• Troubleshooting: Solutions for common operating problems, error messages (status, operator call, software, service), and clearing paper jams.
• Maintenance: Instructions for cleaning the printer (internal surfaces, corona wires) and replacing consumable parts like the EP-S cartridge and ozone filter.
• Service: Information on obtaining support from Digital Equipment Corporation.
• Appendices: A quick reference guide for programming instructions, details on accessories and supplies, full operating and interface specifications, and compatibility notes with the LN03 printer.

The document also includes important safety information regarding FCC compliance, ozone safety, and laser safety.
