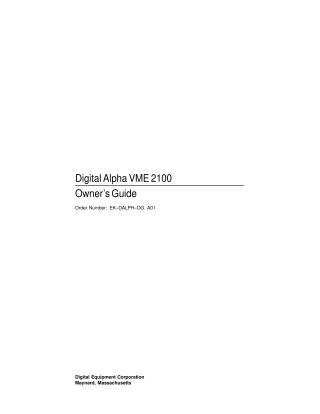

Digital Alpha VME 2100 Owner's Guide

This document is the Digital Alpha VME 2100 Owner's Guide, published in April 1995 by Digital Equipment Corporation.

The guide is intended for system managers and qualified personnel responsible for installing, operating, troubleshooting, and maintaining the Digital Alpha VME 2100 systems. These systems are described as high-performance superservers (part of the AlphaServer 2100 product line) supported by Digital UNIX (DEC OSF/1) and OpenVMS Alpha operating systems, featuring DECchip 21064/21064A processors.

Key areas covered in the document include:

• Introduction and System Overview: Describes the Digital Alpha VME 2100 system's characteristics, components, and controls for both drawer mount and vertical mount configurations.
• Installation: Provides detailed instructions for site preparation, unpacking, and installing both drawer and vertical mount systems, including preparing slides, attaching components, connecting power cords, and adding SCSI devices. It also contains important warnings regarding the system's weight and electrical hazards, emphasizing that only qualified service personnel should perform installation.
• Operation: Explains how to use the Operator Control Panel (OCP) for power-up/diagnostic display, DC power control, halt, and reset functions.
• Console Commands: Details the command-line interface for system management, including basic commands for booting, initializing, setting environment variables, displaying system configuration (show config, show device, show memory), and running diagnostics (test).
• Options and Upgrades: Discusses planning upgrades, supported CPU and memory modules, and configuring system bus options (VME, PCI, SCSI) and power supply.
• Troubleshooting: Offers comprehensive guidance for identifying and resolving system problems, covering power issues, console access difficulties, interpreting diagnostic displays, and errors related to mass storage, PCI bus, booting, and operating system functions, including the use of a fail-safe loader.
• Hardware Specifications: Provides technical details on system dimensions, electrical specifications, and environmental operating conditions.
• Compliance and Safety: Includes FCC and EC Class A product warnings regarding potential radio interference in residential environments and general safety symbols for high temperatures and electrical energy.
