DECstation/DECsystem 5000 Models 50/150/260 IPB

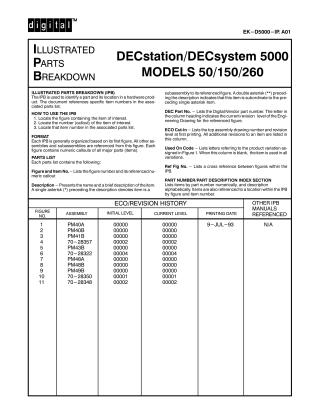

This document, "EK-D5000-IP. A01," is an Illustrated Parts Breakdown (IPB) for Digital Equipment Corporation's (DEC) DECstation/DECsystem 5000 computer models (50, 150, and 260).

Its primary purpose is to help users identify specific hardware components and their locations within these products.

The IPB is structured as follows:

• Figures: Exploded-view diagrams of assemblies and subassemblies with numeric callouts for major parts.

• Parts Lists: Detailed tables corresponding to the figures, providing for each item:

  • Figure and Item Number (callout)
  • Description (name, brief description, indicating if it's a subassembly)
  • Digital/Vendor Part Number (DEC Part No.)
  • ECO Cut-In (revision level and history)
  • Used On Code (product variation where the part is used)
  • Reference Figure Number (cross-references to other figures).

• ECO/Revision History: A table tracking the initial and current revision levels and printing dates for various assemblies.

• Part Number/Part Description Index: An index section (partially shown) for searching items by part number or description, referencing their location by figure and item number.

The document also includes standard legal notices, disclaimers, and lists of Digital Equipment Corporation trademarks, with a printing date of July 1993.
