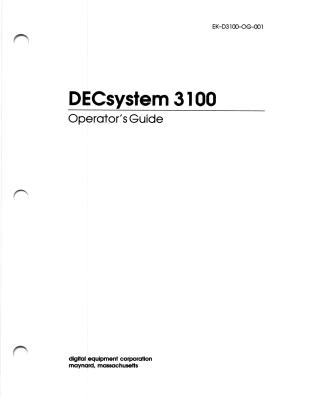

DECsystem 3100 Operator's Guide

This document is the DECsystem 3100 Operator's Guide, published in May 1989 by Digital Equipment Corporation.

It serves as a comprehensive guide for users to operate and troubleshoot their DECsystem 3100 hardware. Key topics covered include:

• Basic Hardware: Descriptions of the system unit and console terminal, including connectors, controls, and indicator lights.
• System Operation: Instructions for turning the DECsystem 3100 on and off, interpreting and using the configuration display, and employing console commands.
• Tape Drive Usage: Detailed steps for checking tape leader position, write-protecting/enabling cartridges, loading, removing, and labeling tape cartridges.
• Hardware Options: Information on adding memory, storage devices (like RZ55 hard disks and TK50Z tape drives), printers, and modems, often advising to contact Digital service for installation.
• Troubleshooting: Guidance on using power-up self-tests and console commands (test -a, test -c) to diagnose hardware problems, including issues with Ethernet connections, SCSI devices, and peripherals like printers and modems. It also advises on when and how to contact a Digital service representative.
• System Relocation: Procedures for dismantling, packing, and reinstalling the DECsystem 3100.
• Appendices: Extensive lists of console commands, detailed self-test code interpretations (both console terminal and LED), environmental requirements for system components, and part numbers for various cables, components, and documentation.

The guide emphasizes practical, step-by-step instructions for operators managing the DECsystem 3100.
