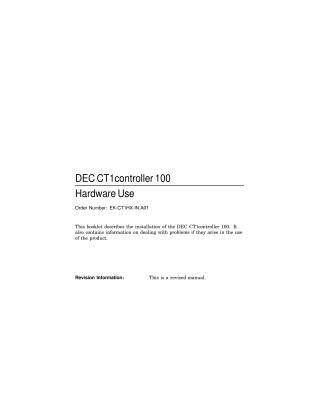

DEC CT1controller 100 Hardware Use

This document is a Hardware Use manual for the DEC CT1controller 100.

It describes the DEC CT1controller 100 as a TURBOchannel option that provides a single Channelized T1 (CT1) port, connecting to a public telecommunications network via a Channel Service Unit (CSU). The device supports up to 24 connections at 64 Kbits/s over a single T1 line with a maximum data rate of 1.536 Mbits/s.

The manual covers:

• Installation: Instructions for installing the controller (referring to the host system's documentation for specific steps).
• Cabling: How to attach and remove cables from its single RJ48 socket, including specific cable (BC29P-07) and adapter (DW120-AA) usage.
• Problem Solving: Guidance on diagnosing issues during power-up and operation using front panel LED indicators, and identifying console messages related to faults.
• Specifications: Detailed information on cabling (pinout, loopback connector H4082-AB), communications (line speed, channel speed, line interface DSX-1), physical dimensions, and front panel layout.
• Regulatory Information: Details regarding compliance with FCC, German, and Canadian telecommunications regulations.
