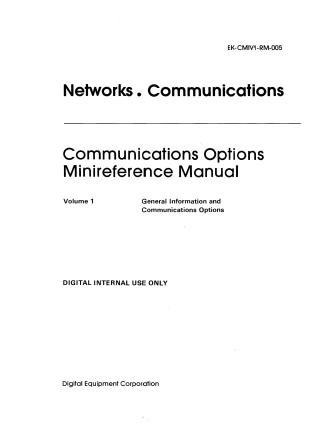

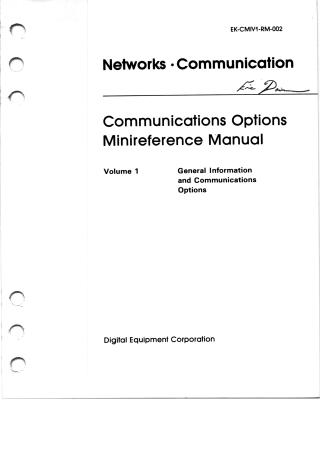

Networks Communications Communications Options Minireference Manual Volume 1 General Information and Communications Options

This document is "Volume 1" of the "Communications Options Minireference Manual" published by Digital Equipment Corporation, primarily intended for its Field Service personnel.

It serves as an easy-to-use reference for essential installation and maintenance procedures related to networks and communications products. This volume specifically covers:

1. Generic Communications Information: Including floating device and vector addresses, diagnostic summary charts, detailed cable specifications and pinouts (e.g., BC series cables), test connectors and terminators (e.g., H series), and EIA/CCITT interface pin/signal designations and standards equivalency.
2. Vendor Modem Products: A characteristic summary of selected modems (e.g., Bell 103J, 201C) and recommended options.
3. Detailed Modem Information: Specific sections on various Digital Equipment Corporation modem models (DF127, DF129, DF212, DF224, DF242), outlining their general descriptions, specifications, installation procedures (including jumper and switchpack configurations), and testing guidelines.
4. Modem Theory: Refresher information on modem communication circuits, U.S. and CCITT modem types and standards, handshaking sequences, constellation displays, and P/LTN line conditioning.

As part of a multi-volume series, it supersedes previous editions of the Communications Options Minireference Manual and is designated for internal use within Digital Equipment Corporation.
