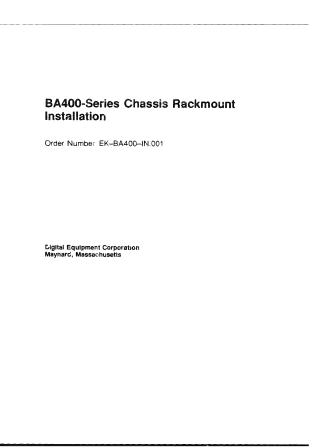

BA400-Series Chassis Rackmount Installation

This document is an installation manual (Order Number EK-BA400-IN.001) for rackmounting BA400-series chassis.

Key points:

• Purpose: Provides procedures for installing BA400-series chassis into Digital Equipment Corporation's H9A00, H9646, and H9642 cabinets.
• Rackmount Kits: Specifies two variations of the rackmount kit: BA400-CB for H9A00 cabinets and BA400-CA for H9642/H9646 cabinets. (Note: BA400-series chassis cannot be mounted in SAxxx storage array cabinets).
• Audience: Intended for Digital service personnel and qualified self-maintenance customers.
• Installation Steps: Covers verifying site preparation, checking the rackmount kit hardware, removing enclosure skins and base, locating specific mounting hardware positions (isolators, L-brackets) using a template, attaching "skis" to the chassis, and finally installing the chassis into the cabinet.
• Shipping Hardware: Includes special procedures and hardware (shipping plates and locks) required to protect the shock isolators if the racked cabinet is to be shipped. This hardware must be removed before operating the system to prevent damage.
• Safety: Emphasizes warnings, cautions, and notes throughout, including the need for two people to lift and move the BA400-series chassis.
