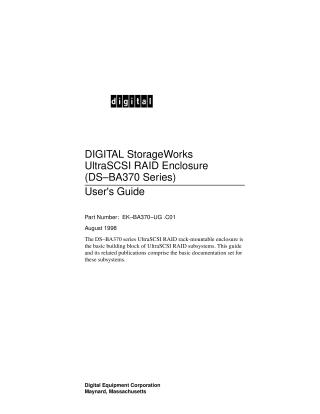

DIGITAL StorageWorks UltraSCSI RAID Enclosure (DS-BA370-Series) User's Guide

This document is the User's Guide for the DIGITAL StorageWorks UltraSCSI RAID Enclosure (DS-BA370-Series), published in January 1998.

It describes the functions, operations, components, configurations, assembly, and specifications of this rack-mountable enclosure, which serves as a basic building block for UltraSCSI RAID subsystems.

The guide provides comprehensive information for personnel responsible for designing, configuring, assembling, installing, and operating these subsystems. It details various key components, including the Environmental Monitoring Unit (EMU), Power Verification and Addressing (PVA) assembly, single-ended I/O modules, power distribution systems, StorageWorks Building Block (SBB) disk drives, and enclosure blowers, covering their operation, configuration, and replacement procedures.
