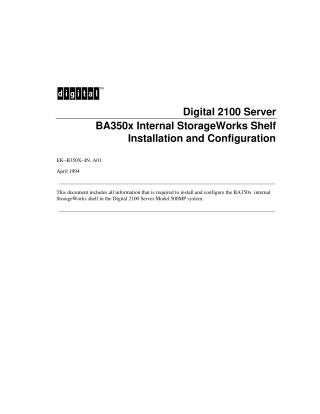

Digital 2100 Server BA350x Internal StorageWorks Shelf Installation and Configuration

This document is an installation and configuration guide for the Digital 2100 Server BA350x Internal StorageWorks Shelf, specifically for the Model 500MP system.

It outlines a five-step installation process:

1. Disconnecting AC power (with safety precautions).
2. Removing the grill cover.
3. Removing the cable routing box.
4. Installing and routing power cables.
5. Physically installing the StorageWorks shelf.

Beyond installation, the guide details configuring the StorageWorks shelf, explaining that the backplane automatically assigns SCSI node IDs (0-3, top to bottom) for up to four pairs of drives on a dual bus. It provides instructions for installing fixed disks, emphasizing the importance of installing drives or blank bezels in all slots for proper airflow. Finally, it includes information on interpreting the LED indicators (Activity and Fault) for status and troubleshooting.

The document was published by Digital Equipment Corporation in April 1994 and also contains ordering information for the shelf and related manuals.
