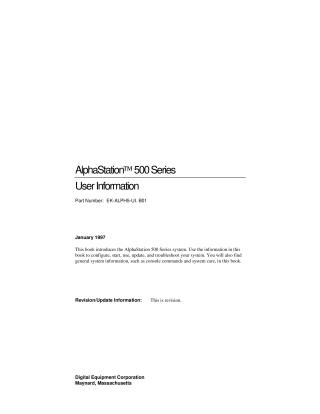

AlphaStation 500 Series User Information

This document is the "User Information" manual for the AlphaStation™ 500 Series system, published in January 1997. It serves as a comprehensive guide for users to configure, start, use, update, and troubleshoot their system.

Key areas covered include:

• System Overview: Introduction to the AlphaStation 500 Series, detailing its high-performance Alpha architecture CPU and hardware components such as I/O bays (floppy, CD-ROM, hard drives), SCSI-2 controller, Ethernet ports, PCI expansion slots, DIMM memory, keyboard, mouse, serial/parallel ports, and built-in audio.
• Getting Started: Instructions on initial setup, including selecting a suitable location for airflow, identifying the correct AC power cord, connecting all system components, and procedures for starting and safely shutting down the system. It also touches on preloaded operating systems (Digital UNIX, OpenVMS) and support for Windows NT, along with console firmware switching.
• Installing System Options: Detailed procedures for adding or removing internal components like memory modules (DIMMs), storage devices (hard disks, floppy, tape drives), and PCI expansion modules, including guidelines for SCSI addressing and termination. It also covers connecting external devices.
• Troubleshooting: Guidance on diagnosing and resolving common issues, including initial checks, general system problems (e.g., power, display, boot failures, keyboard/mouse responsiveness), and interpretation of SROM status and error codes.
• Console Commands: A reference to both ARC (Advanced RISC Computing, for Windows NT) and SRM (System Reference Manual, for Digital UNIX and OpenVMS) console commands, covering functions like hardware configuration, environment variable settings, and boot management.
• System Care: Advice on cleaning the system unit, monitor, mouse, and keyboard, as well as procedures for safely moving or packing the system.
• Technical Specifications: Detailed information on the system's dimensions, environmental specifications, acoustics, power requirements, and pin assignments for various external connectors and internal jumpers.
• Device Mapping: Lists of I/O address and interrupt assignments.
• Firmware Updates: Explanations on how to update the system's flashROM firmware.
• Operating System Installation: Steps for initiating installations of Windows NT Workstation, Digital UNIX, and OpenVMS.
• Sound Card Overview: Details about the integrated sound card, its module layout, connectors, and software setup.
• Equipment Log: Tables for users to record system hardware and software configuration information.
• FCC Classification: Important notices regarding the system's FCC compliance as a Class A or Class B device.

The document is intended for users who will be operating, configuring, or adding options to the AlphaStation 500 Series system.
