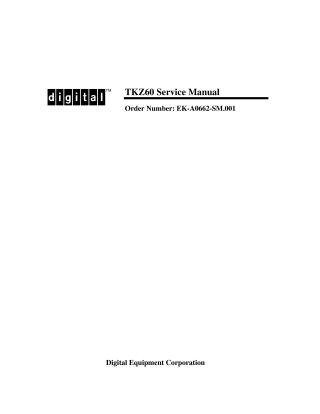

TKZ60 Service Manual

This document is the TKZ60 Service Manual, published by Digital Equipment Corporation in 1993, specifically intended for service engineers.

The manual provides comprehensive instructions and information for maintaining and troubleshooting the TKZ60 tape drive, which is described as a half-inch cartridge streaming tape drive designed for data interchange, archival storage, software distribution, transaction management, and system backup.

Key areas covered in the manual include:

• Product Overview: Detailed physical and functional descriptions of the TKZ60, its use of the IBM 3480 format with 0.5-inch tape cartridges, SCSI interface, 512KB cache memory, and dual-processor architecture. It also outlines various hardware configurations (rack-mount/tabletop, with/without Automatic Cartridge Loader).
• Operating Procedures: Instructions on how to operate the tape drive, including loading and unloading cartridges (both manually and with an Automatic Cartridge Loader) and performing routine maintenance like tape path cleaning.
• Troubleshooting and Diagnostics: Extensive guidance on diagnosing and resolving faults, including interpreting Fault Symptom Codes, running power-up diagnostics, host-level diagnostics for OpenVMS and ULTRIX/OSF/1 systems, and various drive-level diagnostic tests for configuration and calibration.
• Field Replaceable Units (FRUs) and Firmware: Lists of FRUs with detailed removal and replacement procedures, supported by exploded views, and instructions for firmware updates.
• Product Specifications: Technical specifications covering performance (e.g., tape speed, data transfer rates, reliability), power requirements, mechanical dimensions, environmental operating conditions, and regulatory compliance (including FCC Class A and VCCI standards for radio frequency interference and acoustic emissions).
