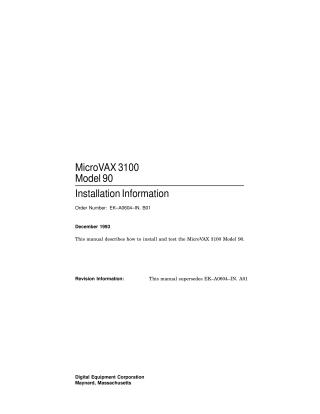

MicroVAX 3100 Model 90 Installation Information

This document is the "MicroVAX 3100 Model 90 Installation Information" manual, published in December 1993. It provides step-by-step instructions on how to install and test the MicroVAX 3100 Model 90 system.

Designed for both experienced and inexperienced users, the installation procedure covers:

• Choosing a suitable location for the system.
• Unpacking the system and identifying all components.
• Connecting essential cables, including the console terminal, ThinWire terminator, standard Ethernet loopback connector, and power cord.
• Turning on the console terminal and system unit.
• Checking and troubleshooting the power-up test results.

The manual also outlines subsequent (optional) steps for connecting the system to a network and attaching external options, and a mandatory step for booting the pre-installed operating system (referencing other dedicated manuals for detailed procedures on these advanced topics). A key note indicates that the console terminal is not supplied with the system.
