VAX 6000: Installing the VAXBI Option

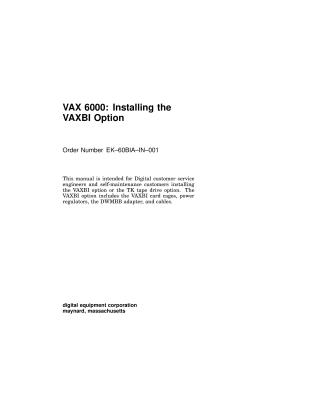

This document, "VAX 6000: Installing the VAXBI Option" (Order Number EK-60BIA-IN-001), published by Digital Equipment Corporation in February 1991, is an installation manual. It is intended for Digital customer service engineers and self-maintenance customers.

The manual provides comprehensive instructions for installing:

1. The VAXBI Option: This includes the installation of VAXBI card cages, H7214 and H7215 power regulators, the DWMBB adapter modules (DWMBB/A and DWMBB/B), and associated cables into a VAX 6000 cabinet. It covers preparation, removal of existing components, and step-by-step installation procedures.
2. The TK70 Tape Drive Option: Instructions for installing the TK70 tape drive and its TBK70 controller module, including cabinet preparation and cabling.

In addition to installation, the document details:

• Acceptance and Troubleshooting: Steps for restoring power, checking self-test results, VAXBI troubleshooting, and interpreting H7206-B diagnostic LEDs.
• TK70 Tape Drive Operation: Guidelines for controls and indicators, loading and unloading tapes, write-protecting cartridges, labeling, and tape handling/storage.

The manual also lists required tools and emphasizes preparation steps for a successful installation.
