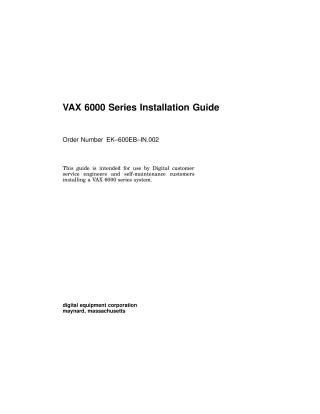

VAX 6000 Series Installation Guide

This document, the "VAX 6000 Series Installation Guide," is intended for Digital customer service engineers and self-maintenance customers responsible for installing a VAX 6000 series system.

The guide provides comprehensive instructions covering:

1. Site Preparation: Guidelines for floor space, environmental conditions, cabinet sizes, and power requirements.
2. Unpacking: Steps for inspecting the shipment, collecting necessary tools, removing packing materials, leveling the cabinet, and connecting essential cables (console terminal, Ethernet, FDDI).
3. Connecting to DSSI Subsystems: Details on cabling and connecting TF tape and RF disk drives (Integrated Storage Elements or ISEs) using the KFMSA adapter, including configuration and setting node IDs.
4. Connecting to CI VAXclusters: Instructions for selecting operating modes on XMI and VAXBI bus adapters (CIXCD and CIBCA) and cabling the system to a Star Coupler.
5. Connecting to Tapes and Disks: How to cable various TU, TK, TA tapes, and RA disk drives using TBK70, KDB50, KDM70, and KLESI-B adapters.
6. Powering Up the System: Procedures for the initial power-up, checking indicators, and operating the control panel.
7. System Self-Test: How to perform and interpret system self-tests, including checking module LEDs and console displays.
8. Verification: Steps to verify system operation, including running diagnostics (VAX/DS, Autosizer, EVCXF), booting from CD servers or tape drives, setting boot devices, and verifying the system under the operating system (UETP).

Additionally, the guide includes appendices on installing a Digital Remote Services Console, proper module handling procedures, installing an expander cabinet, and DSSI configuration sheets.
