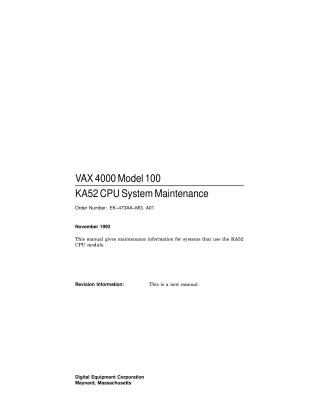

VAX 4000 Model 100 KA52 CPU System Maintenance

This document is the "VAX 4000 Model 100 KA52 CPU System Maintenance" manual, published in November 1992 by Digital Equipment Corporation. It serves as a comprehensive guide for Digital Services personnel and self-maintaining customers.

The manual provides detailed maintenance information for systems utilizing the KA52 CPU module, covering:

1. KA52 CPU Module Description: Details the CPU module, its components, MS44 and MS44L memory modules, and memory option installation procedures.
2. System Configuration: Explains memory configurations (up to 128MB), supported internal and external mass storage devices (SCSI and DSSI), and communication options.
3. KA52 Firmware Commands: Provides a complete reference for console commands, including their syntax, address specifiers, qualifiers, and keywords (e.g., BOOT, DEPOSIT, EXAMINE, SHOW, TEST).
4. System Initialization and Acceptance Testing: Describes the power-up sequence, Power-On Self-Tests (POST), ROM-Based Diagnostics (RBD), main memory layout, and the operating system bootstrap process (including disk, tape, and network bootstrapping).
5. System Troubleshooting and Diagnostics: Offers extensive guidance on product fault management and symptom-directed diagnosis, including VMS error handling, error log interpretation (for CPU, memory, system bus, and DMA faults), Power-On Self-Test (POST) and ROM-Based Diagnostic (RBD) failures, testing DSSI storage devices, using MOP Ethernet functions to isolate failures, and interpreting User Environmental Test Package (UETP) VMS failures. Loopback tests for various ports are also detailed.
6. FEPROM Firmware Update: Explains the process for updating the system's firmware via Ethernet or tape, including error messages.

Additionally, several appendices provide technical reference material on address assignments, ROM partitioning, key data structures used by the CPU firmware, configurable machine states, MOP counters, and system error messages.
