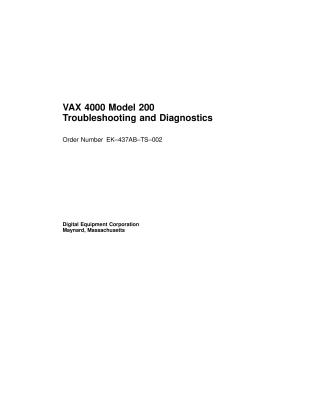

VAX 4000 Model 200 Troubleshooting/Diagnostic Guide

This document is the "VAX 4000 Model 200 Troubleshooting and Diagnostics" manual, published by Digital Equipment Corporation.

Its primary purpose is to help users isolate and diagnose problems with their VAX 4000 Model 200 system when it is not operating as expected. The manual covers three main areas:

1. Troubleshooting During Power-Up (Chapter 1): Addresses issues that occur when the system is first turned on, including problems during self-tests, the boot sequence, and booting from various storage elements like RF-Series Integrated Storage Elements (ISEs) or tape drives.
2. Troubleshooting During Normal Operation (Chapter 2): Provides solutions for problems encountered while the system is running, including general system issues and specific problems related to RF-Series ISEs and different types of tape drives (TF85, TK50, TK70, TLZ04).
3. Running the MicroVAX Diagnostic Monitor (MDM) (Chapter 3): This chapter details the use of the MDM, an optional software package designed to identify faults, display system configuration, and test device interactions. It includes instructions on when and how to run MDM in various system configurations (e.g., diskless, dual-host, from tape or disk), and describes its main menu options for testing the entire system or individual devices.

Additionally, Appendix A provides illustrations of system controls and indicators. The document advises users to contact a Digital service representative if the suggested corrective actions do not resolve the problem.
