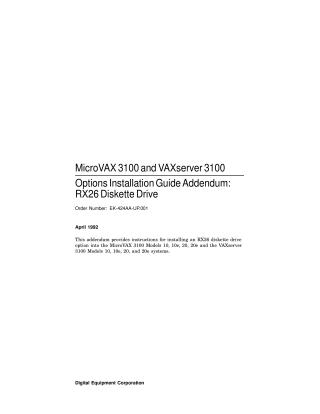

MicroVAX 3100+VAXserver 3100 Opt Inst Addendum,RX26 Dsk Drive

This document is an addendum to the MicroVAX 3100 and VAXserver 3100 Options Installation Guide, providing specific instructions for installing the RX26 Diskette Drive option. Dated April 1992 and published by Digital Equipment Corporation, it details the process for MicroVAX 3100 Models 10, 10e, 20, 20e, and VAXserver 3100 Models 10, 10e, 20, 20e systems.

The guide covers:

• Pre-installation Configuration: Setting the RX26 diskette drive's ID number and configuring the SCSI ID address on the FDI (Floppy Disk Interface) module, including instructions on how to select an unused SCSI address.
• Physical Installation: Step-by-step instructions for mounting the drive with its bracket, attaching rubber grommets and standoffs, connecting the ribbon and power cables to both the drive and FDI module, and integrating the components into the system box.
• Verification: Instructions to confirm successful installation by using the SHOW DEVICE command at the console prompt.
• Important Notes: A caution advising that installation should only be attempted by qualified personnel, and a note indicating that VMS Version 5.4-3 or later is required for RX26 diskette drive support.
