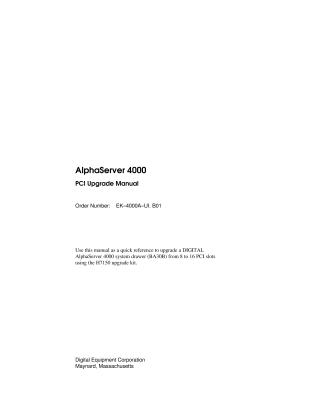

AlphaServer 4000 PCI Upgrade Manual

This document is the PCI Upgrade Manual for the Digital AlphaServer 4000 system, specifically for DIGITAL service engineers. Its primary purpose is to guide users through upgrading a BA30B system drawer from 8 to 16 PCI slots using the H7150 upgrade kit.

The manual outlines an 8-step procedure:

1. Expose the System Drawer: Details steps for pedestal and cabinet systems.
2. Remove Covers: Instructions for removing covers from system bus, second PCI, and power system sections.
3. Remove RFI Shield: Guides on removing the radio frequency interference shield, potentially requiring removal of other modules.
4. Insert Bridge Module: Installation of the system bus to PCI bus bridge module.
5. Install PCI Motherboard: Steps for installing the new PCI motherboard.
6. Install Power Supply: Instructions for integrating the necessary power supply.
7. Install PCI Cards: Guidance on adding PCI option cards to the new slots.
8. Verify Installation: Procedures to confirm the upgrade on DIGITAL UNIX/OpenVMS and Windows NT systems.

The manual also lists the specific contents of the H7150 upgrade kit (including the bridge module, PCI motherboard, power supply, and screws) and the required tools (various screwdrivers).
