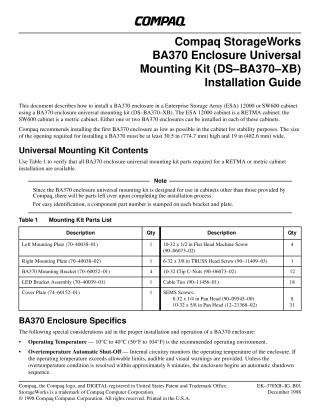

Compaq StorageWorks BA370 Enclosure Universal Mounting Kit (DS-BA370-XB) Installation Guide

This document is an installation guide for the Compaq StorageWorks BA370 Enclosure Universal Mounting Kit (DS-BA370-XB). It details how to install one or two BA370 enclosures into Compaq ESA 12000 (RETMA) or SW600 (metric) cabinets.

Key points include:

• Purpose: To provide instructions for mounting BA370 enclosures in specified cabinet types.
• Capacity: Up to two BA370 enclosures can be installed per cabinet.
• Installation Order: The first enclosure should be installed as low as possible for stability.
• Cabinet Requirements: A minimum opening of 30.5 in (774.7 mm) high and 19 in (482.6 mm) wide is needed.
• Kit Contents: Users should verify parts against the provided list, noting that leftover parts are expected due to the kit's universal design.

• Crucial Safety Warnings:

  • The full BA370 enclosure is very heavy (>102 kg / 225 lb) and must be installed empty.
  • At least two people are required for lifting, aligning, and securing the enclosure.
  • Cabinet stabilizer legs should be extended to prevent tipping.
  • All power must be removed from operational cabinets before installation.
  • An upper enclosure should not be installed unless a lower one is already in place or the cabinet is otherwise sufficiently weighted for stability.

• Installation Steps: Involve installing left and right mounting plates (lower first, then upper), attaching LED brackets and mounting brackets to the enclosure, and then carefully inserting and securing the enclosure into the cabinet.

• Enclosure Specifics: Recommended operating temperature is 10°C to 40°C (50°F to 104°F), and the enclosure has an automatic overtemperature shut-off.
