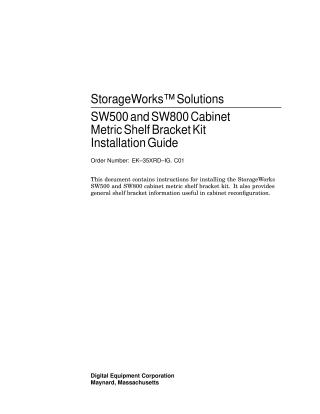

StorageWorks Solutions SW500 & SW800 Shelf Bracket Kit Inst

This document is an installation guide for the StorageWorks SW500 and SW800 cabinet metric shelf bracket kits.

It provides detailed instructions for installing both horizontal and vertical shelf brackets, distinguishing between two main types: screw-mounted and tab-mounted brackets. Each kit includes shelf mounting brackets, stop brackets, and locking brackets, with specific locking bracket sizes for different cabinet positions.

The guide covers:

• Cabinet preparation and shutdown procedures, including power removal for safety.
• Accessing the cabinet rack space by removing external panels.
• Horizontal shelf installation for both screw-mounted and tab-mounted bracket types.
• Vertical shelf installation, which requires first identifying the existing "horizontal cabinet bracket" type (a two-piece or one-piece bracket) as this determines the compatible vertical shelf bracket kit and whether cabinet modification is necessary.
• Finally, it outlines the steps for reinstalling the exterior cabinet panels.
