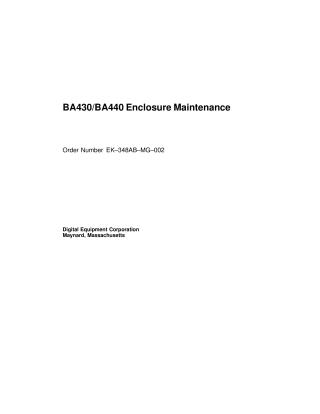

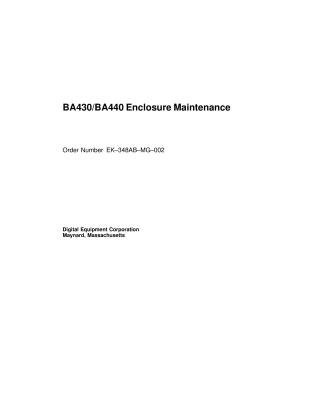

BA430/BA440 Enclosure Maintenance

This document, "BA430/BA440 Enclosure Maintenance" (Order Number EK–348AB–MG–002), published by Digital Equipment Corporation in September 1990, serves as a comprehensive manual for the BA430 and BA440 pedestal enclosures. It is intended for Digital Customer Services personnel and qualified self-maintenance customers.

The manual is structured into three main chapters and an appendix:

• Chapter 1: Enclosure Description: Provides an in-depth overview of the BA430/BA440 system enclosures, detailing their components such as the mass storage shelf (for disk and tape Integrated Storage Elements - ISEs), System Control Panel (SCP), card cage, power supply, fan tray, and backplane. It outlines features like keylock access, module handles, and explains the differences and specific components for each enclosure model, including their power requirements and configuration guidelines.
• Chapter 2: Installation: Covers site preparation considerations, including physical dimensions, environmental conditions (acoustics, heat dissipation, temperature, humidity), electrical requirements, and precautions against static electricity. It provides step-by-step instructions for unpacking the system, connecting console terminals and power, and installing various RF- and RZ-series ISEs and TLZ04 tape drives, including guidance on bus node ID plugs and labeling.
• Chapter 3: FRU Removal and Replacement: Describes the procedures for removing and replacing Field Replaceable Units (FRUs) within both the BA430 and BA440 enclosures. This includes detailed instructions for modules (CPU, memory), RF/RZ-series ISEs, TK/TLZ04 tape drives, the System Control Panel, the Vterm board (BA440 only), the power supply (with important safety warnings), fans, and the backplane. The document notes that installation procedures are generally the reverse of removal.

An Appendix lists related documentation for MicroVAX or MicroPDP–11 systems.
