releasenotes30

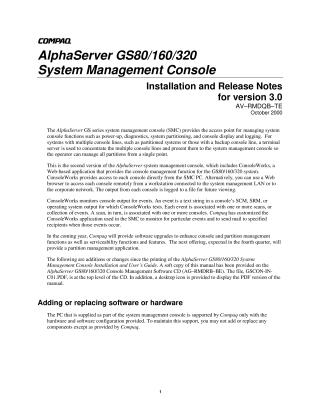

This document provides installation and release notes for version 3.0 of the Compaq AlphaServer GS80/160/320 System Management Console (SMC) software.

The SMC serves as a central access point for managing AlphaServer console functions such as power-up, diagnostics, partitioning, display, and logging, utilizing a terminal server for systems with multiple console lines. The core component is ConsoleWorks, a Web-based application that enables remote console access, output logging, event monitoring, and email alerts for specific events.

Key points covered include:

• Installation Procedure: How to verify if V3.0 is installed, and detailed steps for installing it if not. Installation involves restoring Windows NT (requiring prior data backup due to disk repartitioning), configuring TCP/IP settings (computer name, IP address), and loading the ConsoleWorks software. Specific procedures are outlined for different PC models (DPENM/DPEND and ENCM/ENL).

• Important Installation Notes:

  • Do not use a password for the administrator account to ensure the PC autostarts after a power failure.
  • Set the display resolution to at least 800x600 pixels.
  • Compaq only supports the provided hardware and software configuration; adding or replacing components is not advised.

• Configuration: Instructions for configuring "WorldWire" for Compaq's remote servicing (including firewall considerations and a test connection). ConsoleWorks runs in Internet Explorer, with default login credentials console_manager / setup.

• Critical Limitation: ConsoleWorks supports a maximum of eight consoles (excluding its internal console). Attempting to add a ninth console will corrupt the application, necessitating a full reinstallation.

• Troubleshooting & Maintenance:

  • Steps to enable PC autostart after power failure (via BIOS settings or switch adjustments depending on the model).
  • How to log on as a different user (though the system reverts to the administrator account on next boot).
  • Guidance on changing Internet Explorer proxy settings.
  • Troubleshooting ConsoleWorks startup issues by checking its services.
  • A correction to the user manual regarding renaming a configuration file (SERIAL_COM1_DEFAULT.CONFIG to DEFAULT.CONFIG) for single console line systems.

• Future Enhancements: The document notes upcoming software upgrades to enhance console, partition management, and serviceability functions.
