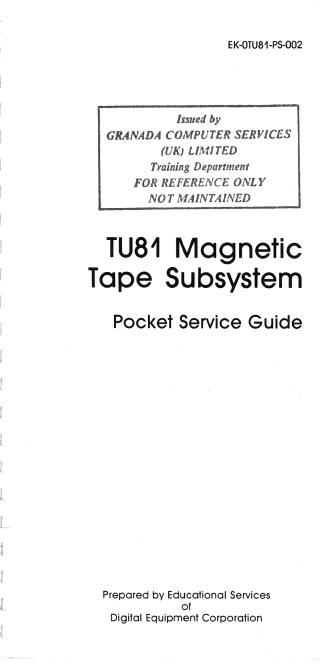

TU81 Magnetic Tape Subsystem Pocket Service Guide

This document is a Pocket Service Guide for the Digital Equipment Corporation (DEC) TU81 Magnetic Tape Subsystem.

Key points:

• Purpose: Provides brief servicing information for the TU81 magnetic tape subsystem, primarily supporting a module replacement maintenance philosophy.
• Target Audience: Intended for service personnel, likely field engineers.
• Status: It's explicitly marked "FOR REFERENCE ONLY" and "NOT MAINTAINED," reflecting its older publication dates (1st Edition Aug 1984, 2nd Edition May 1986).

• Content:

  • Introduction: Covers a general overview of the TU81 (dual-speed, nine-track streaming tape system), its configuration, power supply details, and general maintenance notes.
  • Installation: Provides information on interfacing the TU81 with host systems (VAX/PDP-11) via the M8739 UNIBUS/Q-Bus adapter, including cabling and address selection.
  • Troubleshooting: Details various diagnostic procedures, including internal (resident) diagnostics, host-executable diagnostics (VAX and PDP-11), and ASCII port diagnostics. It also includes information on interpreting fault/error codes and a malfunction matrix.
  • Removal and Replacement: Offers step-by-step instructions for disassembling, removing, and replacing a wide range of components and modules within the tape drive, from sensors and motors to logic and power modules.

• Proprietary Technologies: Mentions specific DEC proprietary protocols like TMSCP, STI, UNIBUS, Q-BUS, and BI-BUS.

• Appendices: Include sense bytes information, a troubleshooting flowchart, a malfunction matrix, and details on installing additional UNIBUS adapters.
