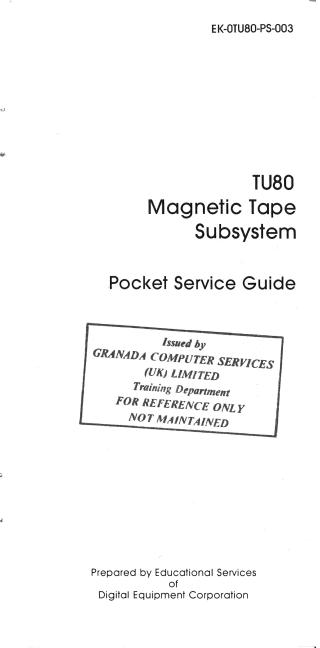

TU80 Magnetic Tape Subsystem Pocket Service Guide

This document, EK-0TU80-PS-003, is the TU80 Magnetic Tape Subsystem Pocket Service Guide, published by Digital Equipment Corporation (with editions from 1983 and 1987). It is designed for trained service personnel and focuses on the maintenance of the TU80, a dual-speed, nine-track streaming tape data storage system.

The core philosophy of the guide is module replacement, explicitly stating that the TU80 does not require mechanical or electrical adjustments or alignments for corrective or preventive maintenance, only regular cleaning of tape path components.

Key areas covered include:

• Introduction: An overview of the TU80 subsystem, its components (tape transport, M7454 UNIBUS adapter), various configurations (up to four TU80s per CPU), required spares and tools, and a detailed explanation of the control panel and its diagnostic features.
• Installation: Instructions for configuring transport options and installing/replacing the M7454 UNIBUS adapter module, including cabling diagrams.
• Troubleshooting: Details resident (internal) diagnostics run via the control panel (e.g., Power-Up Health Check, Operator Tests 01, 02, 03) and host-based diagnostics (for PDP-11 and VAX systems). It emphasizes using fault codes (referenced to an external "TU80 Pathfinder" document) to identify faulty Field Replaceable Units (FRUs).
• Removal and Replacement: Step-by-step procedures for replacing various components both on the tape deck and inside the cabinet, such as the magnetic head assembly, reel motors, control panel, power supply, and logic modules. Each replacement procedure is followed by a verification check.
• Appendices: Provide module layouts and TU80 register summaries.

The document emphasizes conciseness ("Pocket Service Guide") and was issued by a training department for "REFERENCE ONLY" and explicitly stated as "NOT MAINTAINED."
