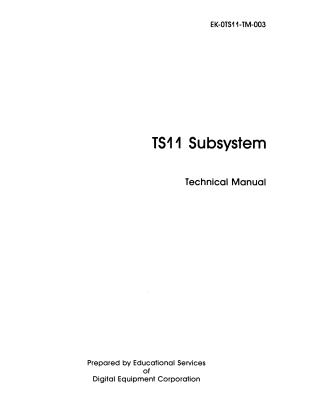

TS11 Subsystem Technical Manual

This technical manual (EK-OTS11-TM-003) provides a comprehensive overview of the TS11 Subsystem, a low-cost, medium-performance, 9-track tape storage system developed by Digital Equipment Corporation (DEC). It is designed for use with Unibus PDP-11 and VAX-11 processors.

The document is structured into seven chapters covering its introduction, installation, user information, operation, programming, theory of operation, and servicing.

Key aspects summarized:

1. General Information (Chapter 1):

   • Functionality: The TS11 is a microprocessor-controlled tape system that reads and writes data at 1600 bits per inch (bpi) phase encoded (PE) at 45 inches per second (ips), with a transfer rate of 72,000 characters per second. It supports bidirectional reading, read-after-write checks, and automatic error correction.
   • Components: It consists of a tape transport with an integrated formatter and a single M7982 interface/controller module that connects to the Unibus.
   • Reliability: Features extensive drive-resident diagnostics that run continuously during standby and off-line self-diagnostics.

2. Installation (Chapter 2):

   • Details site planning requirements (space, power, environmental conditions like temperature, humidity, and heat dissipation).
   • Provides procedures for unpacking various cabinet configurations (rackmount, H960, H9602, H9646) and installing the transport and the M7982 interface module.
   • Outlines acceptance testing procedures including off-line checkout and customer confidence checks.

3. User Information & Operation (Chapters 3 & 4):

   • Customer Responsibilities: Emphasizes obtaining supplies, maintaining logs, keeping documentation accessible, ensuring proper AC connections, and performing preventive maintenance.
   • Tape Care: Provides guidelines for handling and storing magnetic tapes to ensure data integrity and drive reliability.
   • Controls: Explains the front panel pushbuttons (LOAD/REW/UNLD, ON-LINE, EOT) and indicators for operational control and basic troubleshooting (e.g., loading/unloading tape, power failure recovery).
   • Confidence Check: Describes how users can run a diagnostic to verify the transport's operational status.

4. Programming (Chapter 5):

   • Registers: Defines the TS11's core registers: TSBA (Unibus Address Register), TSDB (Unibus Data Buffer), TSSR (Status Register), and XST (Extended Status Registers), detailing their bit definitions and purposes.
   • Packet Protocol: Explains the command and message packet structure used for communication between the host CPU and the transport, including command types (Get Status, Read, Write, Position, Format, Control, Initialize) and how status and errors are reported via termination and fatal class codes.

5. Theory of Operation (Chapter 6):

   • Provides a detailed functional description of the TS11's internal modules and their interconnections via various buses (Serial Bus, I/O BBUS, I/O IBUS, I/O OBUS, etc.).
   • Explains the role of the control microprocessor (including CROM, ALU, timing, and stack operation).
   • Covers the intricate data paths for both read and write operations, including components like read preamplifiers, amplifiers, PE formatter (VCO, data detection, deskew buffer), and write control logic.
   • Describes the mechanisms for tape handling, including capstan motion control (speed regulation, deceleration) and tape tension management.

6. Servicing (Chapter 7):

   • Details the maintenance philosophy, listing special tools and diagnostic routines (initialization, in-line, and off-line microdiagnostics, as well as PDP-11 and VAX-based diagnostics) for troubleshooting.
   • Includes extensive procedures for checks and adjustments of various mechanical (e.g., hub height, tension arms, tape path, BOT/EOT sensor) and electrical components (e.g., power supply, capstan null, tachometer alignment, VCO, threshold, skew).
   • Provides step-by-step instructions for the removal and replacement of numerous modules and assemblies, often noting the specific adjustments required after replacement to ensure proper functionality.
