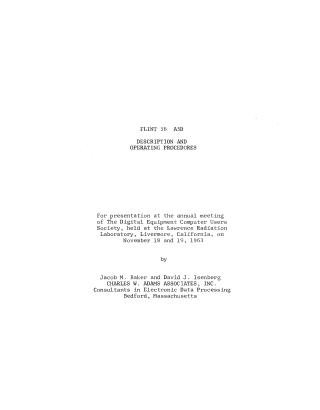

FLINT 36 A3D Description and Operating Procedures 196311

This document, "FLINT 36 A3D DESCRIPTION AND OPERATING PROCEDURES," presents the redocumentation and revised listing of the FLINT interpretive routine for the Digital Equipment Corporation PDP-1, prepared by Charles W. Adams Associates, Inc. for the Digital Equipment Computer Users Society in 1963.

FLINT is designed to enable the PDP-1 to perform double-precision floating-point arithmetic, input/output, and elementary function evaluation.

Key aspects of the document include:

• Origin and Redocumentation: Originally written in FRAP by Itek Corporation, FLINT was converted and redocumented in DECAL due to user demand for improved documentation.
• Core Functionality: It provides a comprehensive instruction repertoire for floating-point operations such as load, deposit, add, subtract, multiply, divide, square root, sine, and cosine.
• Data Representation: Floating-point numbers are represented in y.2^x format, stored in a four-register Floating-Point Accumulator (FLAC), using either a two-word or three-word format for double-precision accuracy, including mantissa, sign, and an exponent with bias.
• Interpreter Operation: The routine operates interpretively, entered and exited via the PDP-1 cal instruction.
• I/O Routines: It includes dedicated subroutines for reading single characters (readc), groups of characters (readg), and buffering input from paper tape (buff). It also offers routines for outputting characters (writio, writc), fixed-point integers (write), and floating-point numbers (writf) to paper tape, console typewriter, or both, with user control over formatting.
• Fixed-Point Conversion: A routine (unflo) is provided to convert floating-point numbers in FLAC to fixed-point integers.
• User Modifications: The document details how users can modify the symbolic tape to create a partially relocateable version of FLINT and how to expand the input buffer size.

Overall, FLINT 36 A3D provides a crucial layer of software for the PDP-1, extending its capabilities with robust floating-point computation and flexible I/O handling, complete with detailed operational procedures and modification guidelines.
