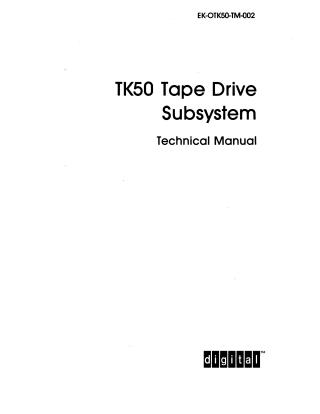

TK50 Tape Drive Subsystem Technical Manual

This technical manual provides comprehensive details on the Digital Equipment Corporation (DEC) TK50 Tape Drive Subsystem, a mass storage device using removable 94.5 MB CompacTape cartridges for backup and software distribution.

The document covers:

1. Introduction and Specifications: Defines the TK50, its components (drive unit, controller, interface cable), and detailed technical specifications for tape speed, bit density, data rate, capacity, recording method, and power requirements.
2. Drive Unit Description: Explains the internal workings of the TK50 Tape Drive, including its physical components (tape transport, read/write heads, motors, tachometer) and the embedded printed circuit board with an 8751 microprocessor. It details circuitry for data handling (MFM format, write/read chains), motion control, and internal diagnostics.
3. Operation Procedures: Provides user-oriented instructions for inspecting, loading, running, and unloading tape cartridges, along with descriptions of front panel controls and indicators. It also outlines common applications like data backup, software distribution, and "journaling."
4. Drive Unit Repair: Lists various error codes generated by the subsystem microcode, their probable causes, and recommended actions for repair technicians, focusing on the removal and replacement of field-replaceable subassemblies.
5. Controller Theory of Operation (Q-bus and Unibus): Describes the architecture and function of the TK50's controller module (M7546 for Q-bus, M7547 for Unibus). It details the 80186 microprocessor, memory (ROM, RAM), peripheral control blocks, DMA operations, interrupt handling, and diagnostic hardware.

The manual is intended for trained Digital service engineers, providing in-depth technical information on both the hardware and operational aspects of the TK50 Tape Drive Subsystem.
