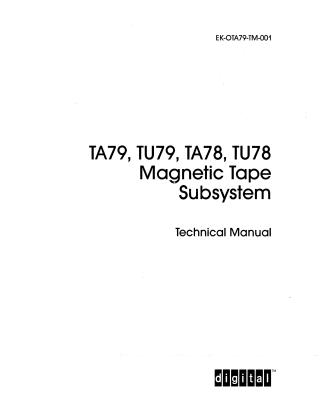

TA79, TU79, TA78, TU78 Magnetic Tape Subsystem Technical Manual

This document is the Technical Manual for the Digital Equipment Corporation (DEC) TA79, TU79, TA78, and TU78 Magnetic Tape Subsystems, published in March 1988.

The manual provides comprehensive functional and detailed technical descriptions of both the high-performance magnetic tape drives and their associated formatter hardware.

Key areas covered include:

1. General Description: Introduces the tape drives' purpose (data backup and interchange), differentiating between TA78/79 (HSC controlled) and TU78/79 (direct Massbus connection). It details their common capabilities, such as writing and reading 9-track phase-encoded (PE) at 1600 bits/inch and group code recording (GCR) at 6250 bits/inch, with a read/write speed of 125 inches/second. It also highlights features like single and double-track error correction, resident microdiagnostics, and error repositioning. Detailed mechanical, electrical, functional, and environmental specifications are provided.
2. Tape Formats: Explains the PE and GCR recording methods, defining common tape terms (bit, byte, record, file, tape mark, interrecord gap) and illustrating the physical data layout on tape, including preambles, postambles, and synchronization bursts crucial for data integrity.
3. System-Level Description: Outlines the formatter's internal system, identifying key functional components such as the system controller (microcomputer), interconnect ports (STI Bus and Massbus), write path, read path, tape unit (TU) port, and maintenance panel. It describes how these components communicate, the microcomputer's role in command arbitration and scheduling, and the system's reliability features including hardware and firmware checks.
4. Formatter Technical Description: Delves into the detailed functional and circuit-level descriptions of each module comprising the formatter, including microcomputers, protocol microcontrollers, various interface components (Massbus, STI, Tape Unit Port), memory structures, data paths for reading and writing, error correction code (ECC) logic, cyclic redundancy checker (CRC), and the formatter's power supply system.
5. Tape Drive, Theory of Operation: Focuses on the physical magnetic tape transport, providing a detailed breakdown of its seven main functional areas: capstan servo subsystem, reel servo subsystems, pneumatic subsystem, read/write subsystem, control logic and manual controls, Multiple Interface Adapter (MIA) interface, and power supply and distribution. It explains the operational principles of tape loading, unloading, and rewind, as well as the intricate data paths for read and write operations.
6. Appendices: Offer supplementary reference material, including a glossary of terms and mnemonics, detailed STI Bus and Massbus register descriptions, tape unit command/status addresses, and interface wire lists.

This manual serves as a comprehensive guide for understanding the design, operation, and maintenance of the TA/TU7x magnetic tape subsystems.
