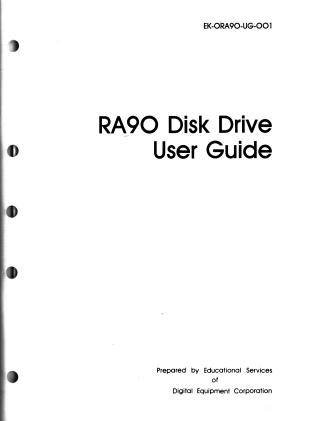

RA90 Disk Drive User Guide

This document is the RA90 Disk Drive User Guide, published in June 1988 by Digital Equipment Corporation. It serves as a comprehensive manual for understanding, installing, operating, and troubleshooting the RA90 Disk Drive.

Key aspects covered include:

• Product Description: The RA90 is a standalone, non-removable thin-film media disk drive with a formatted storage capacity of 1.216 gigabytes. It features a 22 MHz data transfer rate, internal microprocessors, modular field-replaceable units (FRUs), and a multifunction Operator Control Panel (OCP). It supports dual-port capability, allowing it to be shared between two controllers.
• User Precautions and Recommendations: A critical emphasis is placed on data backup (file duplication, journaling), as data is not recoverable from an inoperable Head Disk Assembly (HDA). The guide also provides recommendations for optimal operating temperature (below 25°C for increased reliability) and guidelines for electrostatic discharge (ESD) protection.
• Maintenance Strategy: The primary repair strategy involves replacing failing FRUs, with internal error logs and resident diagnostics used for problem isolation. It's explicitly stated that only trained Digital field service engineers should attempt to service the RA90 disk drive, especially for installation.
• Installation Procedures: This detailed section, intended for trained field service engineers, covers site preparation (power, thermal stabilization, environment, floor loading), unpacking, cabinet preparation, drive add-on order, SDI and power cable installation, and power/safety precautions. It also includes instructions for voltage selection and initial acceptance testing.
• Operating Instructions: For end-users, this section explains the functions and uses of the Operator Control Panel (OCP). It details the drive's three operating modes (normal, fault display, and test mode) and provides procedures for basic operations like spinning up the drive, selecting ports, viewing fault codes, and programming the drive's unit address.
• Diagnostics and Utilities: The manual describes the drive-resident diagnostics, which run automatically at power-up and during idle loops, or can be initiated via the OCP. It outlines the types of tests performed (hardcore, logic, functional) and provides troubleshooting steps if power-up diagnostics indicate problems.

In essence, the guide offers a complete technical overview and operational handbook for the RA90 Disk Drive, distinguishing between tasks for general users (operation, basic troubleshooting) and those requiring specialized training (installation, in-depth service).
