VR150

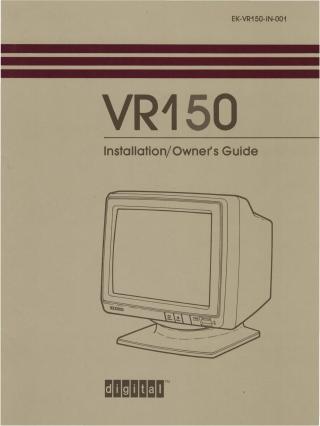

This document is the "Installation/Owner's Guide" (Order No. EK-VR150-IN-001) for the Digital Equipment Corporation VR150 monitor, published in August 1987.

The guide provides comprehensive instructions for installing, operating, and maintaining the VR150. Key information includes:

• About the VR150: It's a monochrome monitor with a 383 mm (15-inch) diagonal screen, capable of displaying information from and to a host system, featuring a paper white phosphor and high-efficiency antiglare treatment. Its display characteristics include 1024 horizontal x 864 vertical pixels.
• Unpacking & Installation: Details how to unpack the monitor (noting it weighs 16.34 kg / 36 lbs and requires two people for handling), place it on a level surface, and connect the video, keyboard, and mouse cables.
• Operation: Explains how to power on the monitor, locate and adjust the brightness and contrast controls, and set the tilt-swivel stand for a comfortable viewing angle.
• Maintenance: Covers procedures for cleaning the screen and replacing the internal fuse.
• Troubleshooting: Provides a table ("Correcting Simple Problems") to help users identify and resolve common issues such as no power, a blank screen, or display problems, suggesting solutions like checking connections or adjusting controls.
• Repairs & Service: Describes various maintenance and repair services offered by Digital Equipment Corporation, including on-site, carry-in, and mail-in options, along with contact information for support.
• Specifications: Lists detailed technical specifications including physical dimensions, display characteristics (CRT type, resolution), video input (BNC composite), timing parameters, power requirements, and environmental operating conditions.

The manual also includes important warnings, cautions, and notes related to personal safety, equipment protection, and general information throughout its sections.
