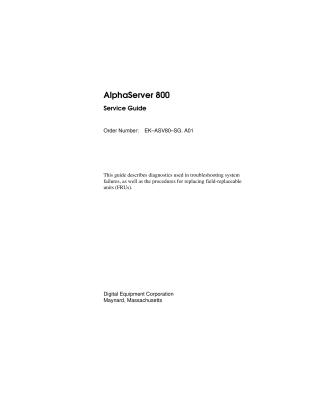

AlphaServer 800 Service Guide

This "AlphaServer 800 Service Guide" is a comprehensive manual for servicing and maintaining AlphaServer 800 systems. Its primary purpose is to provide detailed information on diagnostics for troubleshooting system failures and procedures for replacing field-replaceable units (FRUs).

The guide is structured to cover:

• Troubleshooting Strategy: A systematic approach to diagnosing system problems, including initial questions to consider, categorizing issues (power, console access, boot, operating system-reported failures), and listing essential service tools and information services.
• Power-Up Diagnostics and Display: Instructions on interpreting audible error beep codes, understanding console power-up displays, analyzing the console event log, and troubleshooting issues related to storage device LEDs, control panel LEDs, PCI bus, and EISA bus problems. It also details the fail-safe loader and power-up sequences.
• Running System Diagnostics: How to execute ROM-based diagnostics (RBDs) using console commands like test, sys_exer, memexer (for memory), and net (for network), as well as commands for error reporting (cat el, more el) and terminating diagnostics (kill, kill_diags).
• Server Management Console (RMC): Describes the operation and setup of the RMC for remote monitoring and control, including first-time setup procedures, resetting to factory defaults, and a comprehensive list of RMC commands with troubleshooting tips.
• Error Log Analysis: Explains how to interpret error logs reported by the operating system, detailing fault detection and correction capabilities, machine checks/interrupts, and using the DECevent Translation and Reporting Utility for OpenVMS and DIGITAL UNIX.
• System Configuration and Setup: Provides information on verifying system configuration using firmware interfaces (SRM and AlphaBIOS), details on CPU, memory modules, and motherboard components, and configuration procedures for EISA, PCI, and SCSI bus options, as well as console port settings.
• FRU Removal and Replacement: Step-by-step instructions for safely accessing, removing, and replacing all major field-replaceable units, including CPU daughter boards, memory modules, fans, hard disk drives, the system motherboard, and various cables and options.
• Appendices: Contains reference information on default jumper settings and connector pin layouts.

In essence, this document serves as a complete technical resource for service personnel and qualified self-maintenance customers dealing with AlphaServer 800 hardware and system-level issues.
