W032

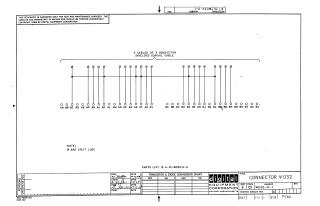

This document is a schematic diagram for a Connector W'032 (part number CS W032-0-1) by Digital Equipment Corporation, copyrighted 1968.

It is intended for test and maintenance purposes and highlights the proprietary nature of the circuits. The diagram illustrates the wiring for 5 shielded coaxial cables, each with 3 conductors. Connections are shown between two rows of points labeled AA through AV and BA through BV. A note clarifies that the points marked with "Ø" (open circles) are "split lugs."

The document also references an external parts list (A-PL-WO32-0-0) and includes a section for a Transistor & Diode Conversion Chart.
