M901

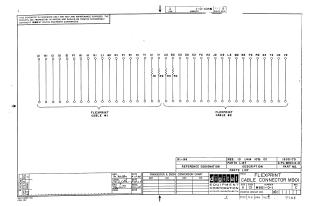

This document is a proprietary schematic (Number 1-0-106W, Revision C) for a Flexprint Cable Connector M901 (Part No. M901-0-1) by Digital Equipment Corporation, copyrighted 1968.

It details the interconnections within two flexible printed circuit cables, labeled "FLEXPRINT CABLE #1" and "FLEXPRINT CABLE #2," showing a series of connection points (e.g., A1-V1, A2-V2). The schematic includes four resistors (R1-R4), which are specified as 10 Ohm, 1/4 Watt, 10% Carbon Composition.

The document is explicitly for test and maintenance purposes only and states that its circuits are proprietary. It includes revision history and drawing dates, indicating it was prepared and checked in August 1968 and engineered in November 1968. A parts list for R1-R4 is provided, referencing a master parts list (A-PL-M901-0-0), and notes the flexprint color as "PINK."
