G998

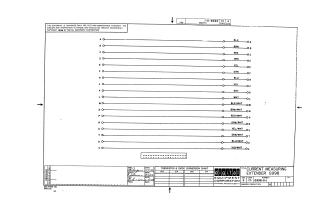

This document is a schematic drawing from Digital Equipment Corporation, copyrighted in 1966. It details the wiring for a "Current Measuring Extender G998" (part number G998-0-1 or drawing number 1-0-8669).

The schematic visually maps indexed lines (A through V) on one side to specific color-coded wires on the other side. The wire colors include solid colors (Black, Brown, Red, Orange, Yellow, Green, Blue, Violet, Gray, White) and corresponding white-striped combinations (e.g., Black/White, Brown/White), each associated with a unique line index.

The document explicitly states it is furnished solely for test and maintenance purposes, contains proprietary circuits, and should be treated accordingly. It also includes a blank "Transistor & Diode Conversion Chart" section and revision history. The drawing was created and approved in March 1966.
