G882

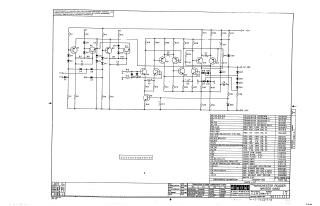

This document is a proprietary schematic diagram for the Manchester Reader Writer G882, created by Digital Equipment Corporation in 1966.

It is provided solely for test and maintenance purposes. The diagram details the electronic circuitry, featuring numerous transistors (Q series), diodes (D series), resistors (R series), and capacitors (C series).

Accompanying the schematic are a comprehensive parts list, specifying component values, tolerances, and manufacturer part numbers, and a transistor and diode conversion chart mapping Digital Equipment Corporation part numbers to their EIA equivalents. The document also includes revision history and drawing personnel details.
