G799

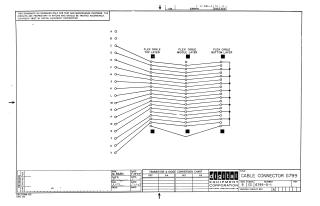

This document is a proprietary schematic for a Cable Connector G799, copyrighted by Digital Equipment Corporation in 1967.

The schematic details the interconnection points from various labeled inputs (A through V) to three distinct layers of a flexible cable: the Top Layer, Middle Layer, and Bottom Layer. Each connection from an input point to a specific flex cable layer point is explicitly shown.

The document states its purpose is solely for test and maintenance, and the circuits are proprietary. It includes the drawing number G799-0-1 and revision A, along with the names of the drafter (M. Waller) and engineer (DJ Chen) and their associated dates in May 1967. An empty "Transistor & Diode Conversion Chart" is also present, suggesting it might be part of a broader system documentation.
