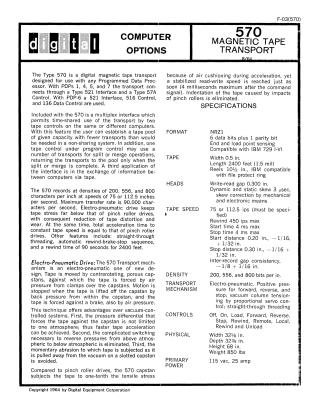

F-03 570brochure Aug64

The 570 is a digital magnetic tape transport designed for use with Digital Equipment Corporation's Programmed Data Processors (PDPs 1, 4, 5, 7, and 6), connecting via specific interface and control units.

Key Features:

• Multiplex Interface: Allows time-shared use of the transport by two tape controls, enabling tape pooling, facilitating split/merge operations, and supporting data exchange between computers.
• Electro-Pneumatic Drive: This innovative mechanism uses air pressure against porous capstans to move and stop tape. It significantly reduces tape stress, distortion, and wear (subjecting tape to one-tenth the tensile stress of pinch roller drives). It also ensures faster, stabilized read-write speeds (4 ms max acceleration) and eliminates tape indentation from pinch rollers.
• Ease of Use: Features straight-through threading and an automatic rewind-brake-stop sequence.

Performance & Specifications:

• Densities: Records at 200, 556, or 800 characters/bits per inch (NRZ1 format).
• Speeds: Operates at 75 or 112.5 inches per second (ips), with a maximum transfer rate of 90,000 characters per second.
• Rewind: Rewinds 2400 feet of tape in 90 seconds (up to 450 ips).
• Tape: Uses 0.5-inch wide, 2400-foot (1.5 mil) tape on 10.5-inch IBM-compatible reels with file protect rings.
• Compatibility: IBM 729 I-VI compatible.
• Controls: Includes Off, On, Load, Forward, Reverse, Stop, Rewind, Remote, Local, and Rewind and Unload functions.
• Physical: Measures 32 1/8" W x 32 3/8" D x 68" H and weighs 850 lbs.
• Power: Requires 115 VAC, 25 amps.
