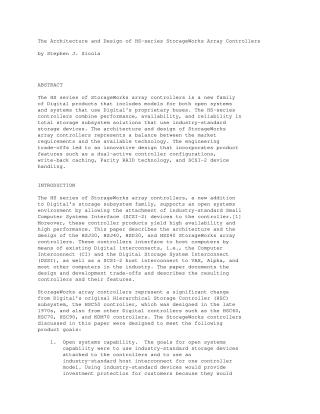

This document details the architecture and design of Digital's HS-series StorageWorks array controllers (HSJ30, HSJ40, HSD30, HSZ40), which aimed to provide high-performance, highly available, and reliable storage solutions for both open systems and Digital's proprietary environments.

The controllers were designed with three primary goals:

1. Open Systems Capability: They support industry-standard SCSI-2 devices (disks, tape, optical) as well as Digital's proprietary CI and DSSI host interconnects, and also an industry-standard SCSI-2 host interconnect (for the HSZ40 model) to connect with various non-Digital computers, ensuring customer investment protection and cost reduction.

2. High Availability: This was achieved through:

   • Controller Fault Tolerance: A dual-redundant, dual-active controller configuration allows one controller to seamlessly take over the devices and cache of a failed partner. This design incorporates "hot swap" capabilities for components, hardware error correction (ECC) for memory, redundant power supplies and fans in enclosures, and a "KILL" signal for controlled failover, preventing data corruption.
   • Storage Fault Tolerance (RAID): The controllers implement "Parity RAID" (a refined RAID Level 5 with dynamic update algorithms and write-back caching) to overcome common RAID 5 weaknesses like the "small-write penalty" and the "write hole" problem (data loss during power failure). This is enabled by a battery-protected nonvolatile cache, ensuring data integrity. The system also features automated Parity RAID recovery, including the use of shared "spare pools" of disks for rapid reconstruction, reducing downtime.

3. High Performance: Performance goals for throughput, latency, and data transfer rates were met through:

   • Command Processing: Streamlined firmware reduces latency and allows for high parallelism and multiple outstanding commands.
   • Caching: Initially read-only, read/write-back caching with battery backup was implemented to dramatically reduce latency for all write requests, especially in Parity RAID configurations, bringing performance close to RAID Level 0 (striping).
   • Write Aggregation: Firmware techniques (contiguous, vertical, horizontal aggregation) combine multiple write requests to optimize operations, effectively simulating RAID Level 3 performance for writes in Parity RAID.
   • Hardware Acceleration: A dedicated FX gate array performs on-the-fly XOR operations, accelerating Parity RAID parity calculations and data comparisons.

The HS-series controllers utilize a common hardware core, powered by an Intel i960CA microprocessor and featuring a shared memory architecture and PCMCIA flash for program storage, contributing to a cost-effective and high-performance solution that is significantly smaller than previous Digital controllers.
