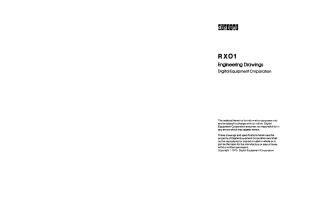

MP-00296-00 RX01 Schematic

This document contains the complete engineering drawings and specifications for the RX01 Floppy Disk Drive by Digital Equipment Corporation (DEC), primarily copyrighted 1975.

The document provides detailed technical information, including:

• A comprehensive directory of components and unit variations for the RX01 Floppy Disk Drive, outlining different configurations such as single/dual drives, various voltage/frequency options, and assembly types (e.g., with or without bezel/plenum).
• Detailed engineering drawings, parts lists, and schematics for all major sub-assemblies, including the Floppy Disk Drive Assembly, Floppy Disk Control Board, Read/Write Control Board, H771 Power Supply, and Plenum/Fan Assemblies (both old and new styles).
• Extensive firmware listings and symbol definitions for the Floppy Disk Controller, detailing the internal logic and instructions that govern its operation.
• Block diagrams illustrating the interconnections between the main system components.
