MP01332 RL02FK Engineering Drawings Dec81

This document is a Field Maintenance Print Set (Order No. MP Ø1332) for the Digital Equipment Corporation (DEC) RLØ2-FK Disk Drive, published in 1981.

It provides comprehensive technical documentation and detailed instructions for the installation and maintenance of the RLØ2-FK disk drive, specifically focusing on its mounting kit and cartridge within various cabinet configurations.

The set includes:

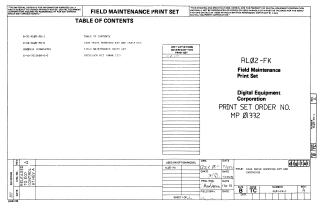

• A table of contents listing related internal documents.
• Numerous technical drawings (e.g., exploded views, cross-sections, detailed component views, installation diagrams) illustrating hole locations, cable routing, and assembly procedures.
• Detailed notes and instructions covering:
  • Compatibility and mounting procedures within different DEC cabinet types (single and double width, H9xx models).
  • Voltage configuration adjustments (110V/220V).
  • Cable routing and the installation of essential accessories like interlock kits, trim pieces, and cable restraint systems.
  • Important caveats such as the separate ordering of I/O cables (as they are not included with the drive) and proper termination for the last drive in a system.
  • Instructions for attaching shipping brackets and adjusting slide brackets for proper alignment.

Essentially, it serves as a detailed visual and textual guide for field service personnel to correctly install, configure, and service the RLØ2-FK disk drive.
