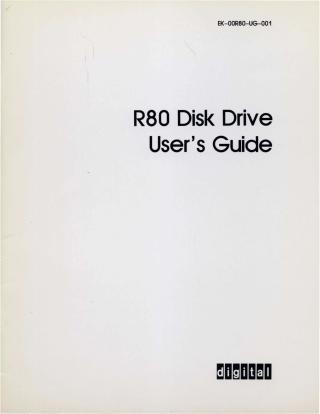

R80 Disk Drive Users Guide

This document is the "R80 Disk Drive User's Guide," first published in April 1982 by Digital Equipment Corporation. It serves as a comprehensive manual for installing, checking out, and operating the R80 Disk Drive.

The R80 is described as a high-performance, non-removable media, free-standing disk drive with a data storage capacity of 124 million bytes. A key feature highlighted is its sealed Head Disk Assembly (HDA), designed to protect data and improve hardware reliability. It boasts a 1.2 MB/s peak transfer rate and a 25 ms average positioning time, incorporating protected media, microprocessor-controlled servo, and automatic error correction for data integrity. The guide details its internal structure, including Servo, Personality, and Microprocessor modules, as well as its data recording features like sector and media formats.

The manual provides extensive information on site preparation and planning, covering environmental considerations (cleanliness, space, heat dissipation, etc.) and AC power wiring. It explicitly states that equipment unpacking, inspection, installation, and servicing should only be performed by qualified Digital Equipment Corporation Field Service personnel due to hazardous voltages. Detailed procedures for unpacking, physically installing the drive (including access to internal components like the logic chassis), and performing microcode diagnostic checkout are included.

Operating instructions cover the various front and rear panel controls and indicators (e.g., RUN/STOP, FAULT, READY, WRITE PROTECT switches and lights), explaining their functions and how to interpret status codes. Basic drive operations like spin-up and power removal are explained, along with customer care procedures such as air filter removal, cleaning, and replacement.
