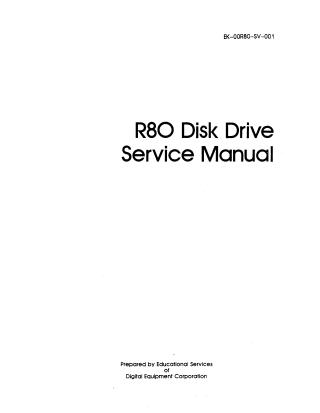

R80 Disk Drive Service Manual

This document is the R80 Disk Drive Service Manual, published by Digital Equipment Corporation in May 1982. It is designed for Field Service engineers to perform corrective maintenance on the R80 Disk Drive.

The manual is structured into five chapters and two appendices:

• Chapter 1: Introduction – Outlines the manual's scope, the R80's maintenance features (e.g., quick access to parts, built-in diagnostics, no head alignments or preventive maintenance), and the "Intelligent Module Replacement" repair philosophy, emphasizing fault isolation to the Field Replaceable Unit (FRU) level using drive-resident diagnostics. It also provides a list of FRUs and related documentation.
• Chapter 2: Removal and Replacement Procedures – Provides detailed, step-by-step instructions for safely removing and replacing all FRUs, with an emphasis on power precautions.
• Chapter 3: Adjustments – Describes the procedures for the R80 Disk Drive's two field adjustments: belt tension and servo adjustment.
• Chapter 4: Drive-Resident Diagnostics – Explains the R80's firmware diagnostic capabilities, covering functional and diagnostic firmware, various fault codes (displayed on the operator control panel and internal LEDs), and a comprehensive range of utility routines and diagnostic tests. It also includes detailed definitions of all error codes.
• Chapter 5: Drive Fault Isolation – Focuses on troubleshooting procedures, providing fault isolation tables to identify likely failing FRUs based on LED error codes, and offers general troubleshooting tips, including handling power supply problems.
• Appendices A & B – Provide hexadecimal to binary and decimal to hexadecimal conversion charts, useful for interpreting diagnostic codes.

In essence, the manual serves as a comprehensive guide for servicing the R80 Disk Drive, empowering technicians with the necessary procedures, diagnostic tools, and troubleshooting information to identify and resolve issues effectively.
