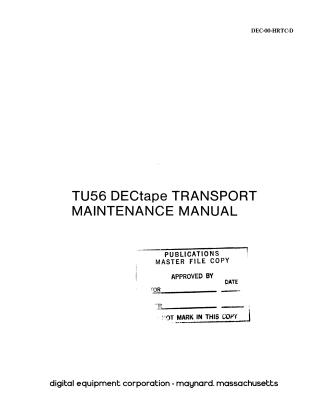

DEC-00-HRTC-D TU56 Mantenance Manual Jul72

This document is the Maintenance Manual for the Digital Equipment Corporation (DEC) TU56 DECtape Transport. It provides comprehensive information necessary for the installation, operation, theory, and maintenance of this solid-state, bi-directional magnetic tape data storage device.

Key aspects covered include:

• General Information: Introduction to the TU56 (dual) and TU56H (single) models, performance specifications (e.g., tape speed, data transfer rate, recording density), and a description of major assemblies like controls, the tape motion system (reel motors control motion and tension without capstans), and the power supply.
• Installation: Detailed procedures for unpacking, mechanical mounting in cabinets, electrical connections, and basic tape loading/unloading and on-line operating instructions.
• Theory of Operation: An in-depth explanation of the transport's interface (command and information cables), the read/write head's functionality, the unique DECtape format (timing, mark, and data tracks, Manchester Phase encoding, redundant track pairing for reliability and skew reduction), and the logical sequence of tape motion control (local and remote). It also describes the specific electronic modules (e.g., motor control, clock regulator, reader/writer).
• Maintenance: Guidance on recommended tools, preventive maintenance (weekly/monthly cleaning and inspection routines, tape care), and corrective maintenance. This section includes procedures for replacing components like control panel lamps, reel motors, and the read/write head, along with troubleshooting tables and signal source/termination tests, particularly emphasizing head skew check and adjustment for tape interchangeability.
• Appendix A: A list of reference drawings and schematics for the transport's components and logic.

The manual emphasizes the TU56's design for reliable data transfer using Manchester Phase encoding and redundant tracks, allowing dependable operation with lower-cost instrumentation tape.
