Flexible Disk Data Storage Systems

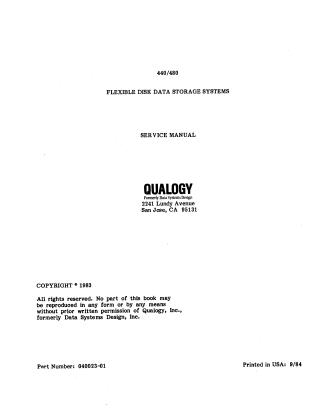

This document is a service manual for the DSD 440 and DSD 480 Flexible Disk Data Storage Systems, published in September 1983 by Qualogy (formerly Data Systems Design).

Key Contents:

• General Information: Provides an overview of the systems, service philosophy, and customer support contact information.
• Interface Modules: Details the I-Bus signal specifications, pin connections, and timing protocols used to interface the controller with computers such as the DEC LSI-11, PDP-11, and PDP-8.
• Controller Module: Offers a detailed theory of operation for the controller, including the 8085 microprocessor, bus structures, ROM/RAM configurations, serial data path, phase-lock-loop (PLL) circuitry, and power sensing circuits.
• Maintenance: Contains procedures for preventive maintenance, power supply adjustments, test equipment recommendations, and troubleshooting techniques. It includes diagnostic flowcharts and error code tables to assist in identifying issues during the initialization (bootstrap) sequence.
• Maintenance Documents: Includes schematics for power distribution, controllers, and various interface modules, along with comprehensive parts lists for the components used in the systems.

The manual emphasizes that servicing should be performed by experienced technicians and highlights specific safety warnings regarding power and radio frequency interference.
