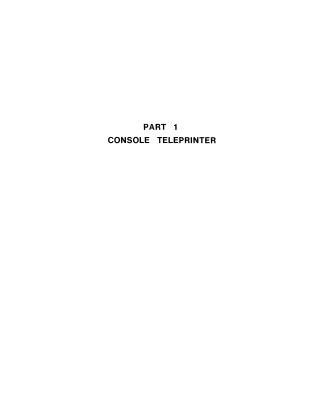

Console Teleprinter

This document serves as an introduction and technical overview of the LC8-E DECwriter Control, which interfaces the LA30P DECwriter with the PDP-8/E computer. The control utilizes a single M8329 quad module that connects via the OMNIBUS and a supplied signal cable.

Key highlights include:

• Installation and Maintenance: The control is installed exclusively by DEC Field Service personnel. The document emphasizes that users should not attempt to service the equipment themselves and refers to the LA30 DECwriter Maintenance Manual for comprehensive operational and troubleshooting details.
• Functional Overview: The LC8-E manages two primary operations: transferring data from the CPU AC Register to the LA30 printer buffer, and transferring data from the LA30 keyboard buffer to the AC Register.
• Detailed Logic:
  • IOT Decoder Logic: The system uses 12 IOT instructions (6 for keyboard, 6 for printer). Users can assign unique device selection codes using onboard jumpers and solder terminals, allowing multiple LA30 units to be interfaced with a single PDP-8/E.
  • Printer Receive Logic: Initiated by specific program instructions (e.g., TFL, TLS), the logic manages print cycles, uses the DEMAND signal to track printer status, and integrates with the interrupt system to signal the computer when the printer is ready for data transfer.
