Power Fail and Auto Restart

This document consists of technical engineering drawings and a master drawing list for the Digital Equipment Corporation "Power Fail and Auto Restart" (KP8-E) module.

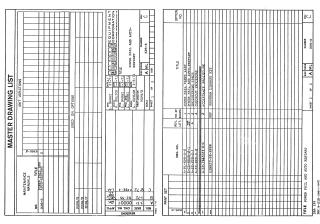

The document includes:

• Master Drawing Lists: Outlines the documentation hierarchy, including parts lists, engineering specifications, and checkout procedures for the module.
• Schematic and Board Layouts: Provides detailed circuit diagrams and component placement layouts (etch board views) for the KP8-E circuit board.
• Parts Lists: Includes extensive tables listing specific electronic components (resistors, capacitors, diodes, transistors, and integrated circuits) used in the assembly.
• Field Installation Notes: Provides specific instructions for connecting the module to the power supply, including cable configurations for different hardware setups and jumper settings.
• Threshold Settings: Includes reference tables for power fail thresholds based on voltage levels for 115V AC and 230V AC operations.
