I/O Cable

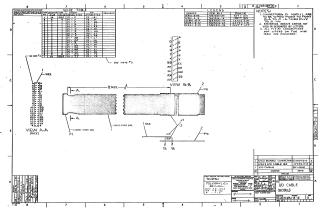

Summary This document is an engineering drawing for an I/O cable assembly (model BC08J-0-0) manufactured by Digital Equipment Corporation. It details the physical layout and point-to-point wiring configuration for a cable connecting interface P1 to interface P2.

Key information provided includes:

• Wiring Table: Lists specific pin-to-pin connections for various lettered identifiers (A through VV).
• Legend: Provides the specific part numbers and corresponding cable lengths (ranging from 6 feet 2 inches to 50 feet 1 inch).
• Technical Specifications: Specifies that all connections are point-to-point, identifies grounded connections, and provides a cross-sectional view (View B-B) and connector pin-out view (View A-A).
• Parts List: Identifies the necessary components, including the etch board connector (1210073-0) and the I/O cable board (M953-0-5).
