Power Control 841A

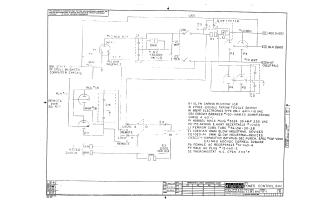

Summary: This document is a technical schematic for a Digital Equipment Corporation (DEC) power control unit. The diagram illustrates the electrical wiring configuration for a power distribution system, including a remote power source input, a console switch for local/remote operation, and a filtering circuit. Key components detailed in the schematic include a circuit breaker, a thermal switch (thermostat) set to 203°F, a 10-ohm carbon resistor, and various connectors (P1–P7) used for AC power distribution. The schematic also lists specific hardware, such as the Hubbell male plug, Ebert Electronics relay, and various capacitor specifications.
